Tableau dashboards are known for their ability to present data clearly. It’s their standout feature. However, traditional dashboards can sometimes limit user’s data exploration by presenting it in pre-defined hierarchies. The Drill-Down Tree extension enhances data exploration within Tableau dashboards and empowers viewers to delve deeper into specific areas of interest, enabling a more comprehensive understanding of the data.

Introduction to Drill Down Tree Extension

Benefits of Using Drill Down Tree in Tableau

Step-by-Step Implementation Guide

Real-World Use Cases and Examples

Overview of Tableau Drill Down Tree

Key Features and Advantages

How to Implement the Extension

Success Stories and Applications

In this blog we will examine the functionalities and implementation procedures for the Drill-Down Tree extension. By leveraging this powerful tool, you can create interactive dashboards that encourage user exploration and uncover hidden insights within your data.

Implementing the Drill-Down Tree extension is fairly straightforward and can be achieved by following the below steps.

Step 1

Prepare Data

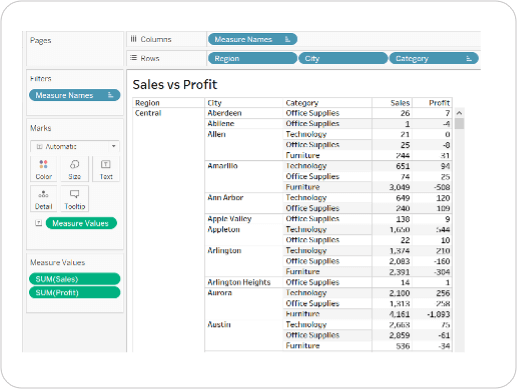

• Connect to data source and create a sheet as per the requirement. For instance, here’s a Sales v/s Profit sheet as shown below:

Step 2

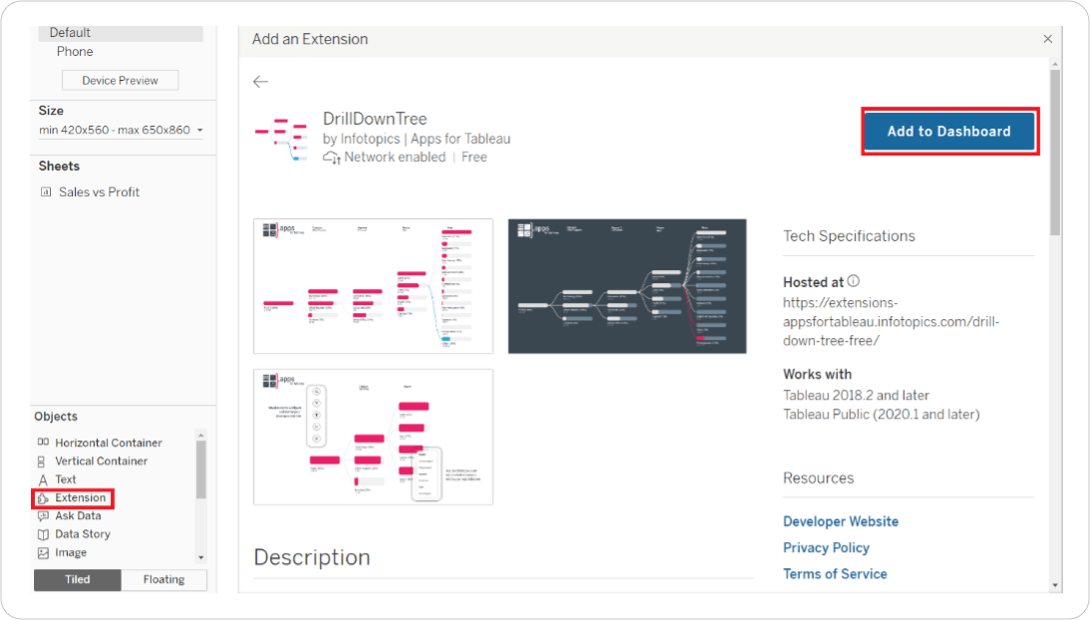

Add Drill-Down Tree Extension

• When utilizing the free version of the extension, the drill-down functionality is somewhat restricted compared to the premium version. In the premium version, users have the capability to drill down on multiple dimensions seamlessly. However, with the free version, there are limitations wherein users can only add 2-3 dimensions for drill-down purposes. To access this functionality, you can download and install the free extension.

• Upon adding the extension to the dashboard, you’ll notice two options viz., “Configure” and “Documentation.” If you’re familiar with the configuration process, you can proceed by clicking on “Configure.” However, if you require guidance on configuration, click on “Documentation” for detailed instructions.

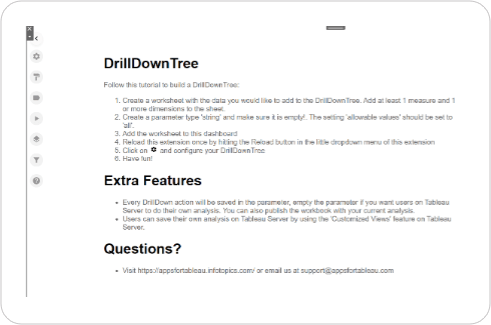

• When you click on “Configure,” you’ll find detailed instructions on what you need to create in order to set up the extension effectively.

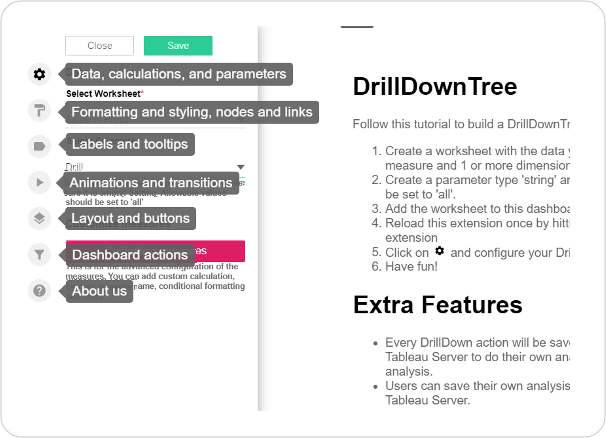

In the configuration section, you have the flexibility to customize various aspects such as font styles, labels, calculations, dashboard actions, layout, buttons, and more according to your specific requirements. The initial step involves selecting the worksheet and parameter to begin the configuration process.

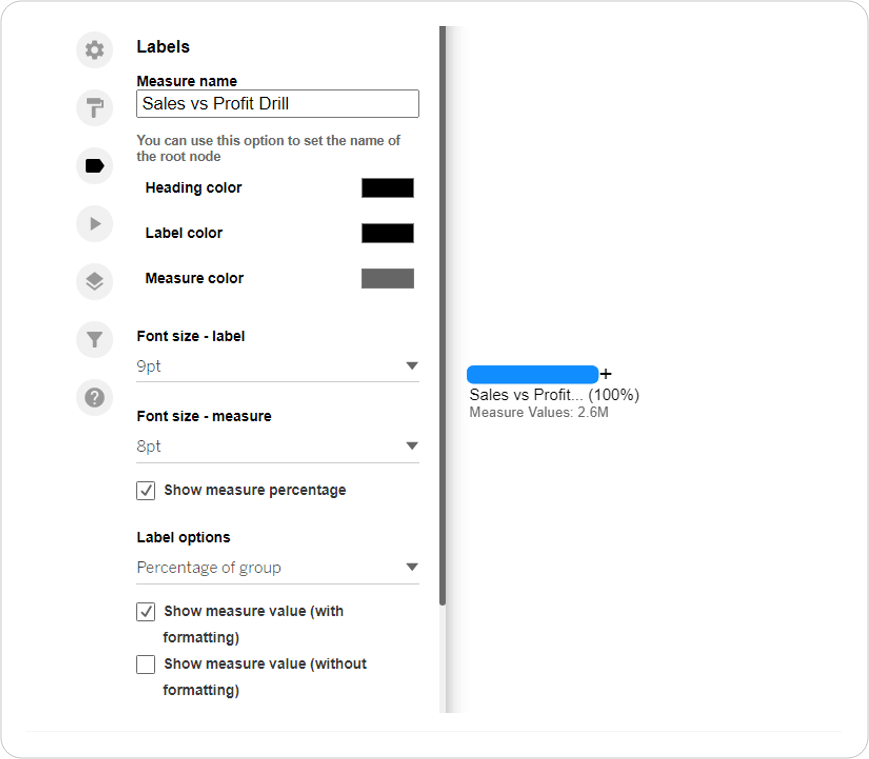

Once you’ve selected the worksheet and parameter, you’ll notice a blue pill with a “+” sign. Clicking on this allows you to perform further drill-down analysis. Additionally, there are various settings available that you can customize to meet your specific visualization requirements.

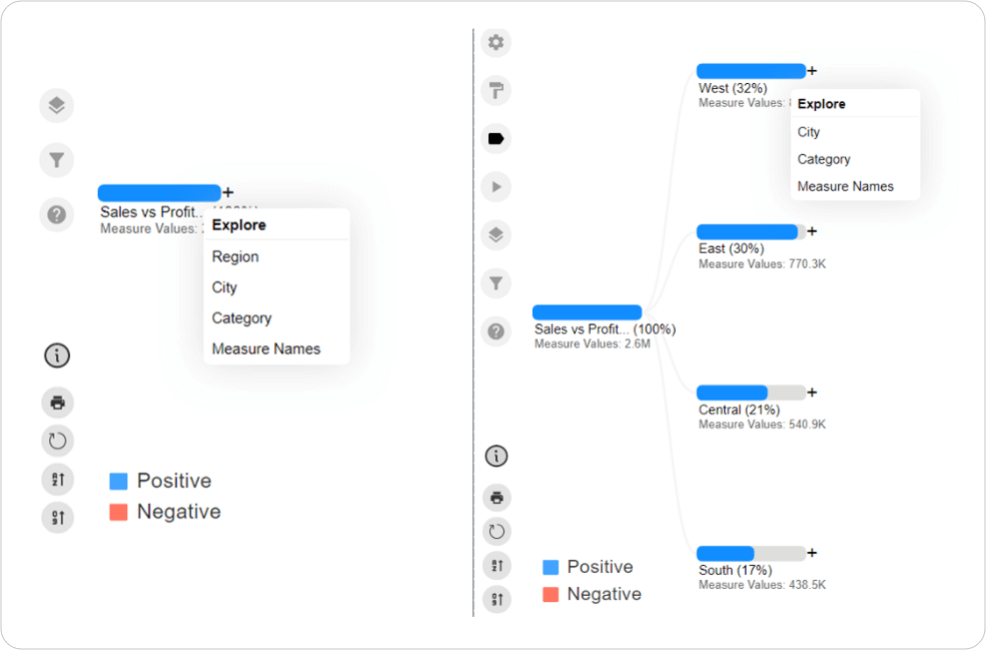

When you click on the “+” button, you’ll be presented with a list of dimensions from which you can choose to drill down into the data. For example, selecting “Region” will aggregate the data and break it down into different regions. You can further explore by clicking on other dimensions to analyse the data from different perspectives. Reset Drill Down Tree by Clicking on “Refresh” icon.

Step 3

Publish and Share

After finalizing your dashboard with the drill-down tree, publish it to Tableau Server or Tableau Online to share it with stakeholders. Ensure that appropriate permissions are set to control access to the dashboard and underlying data.

Conclusion

The Drill-Down Tree extension is a valuable tool for enhancing data exploration within Tableau dashboards. By following these steps, you can successfully implement a drill-down tree in Tableau and leverage its capabilities to visualize and explore hierarchical data structures effectively. To fully leverage the extension, it’s essential to explore and utilize its additional functionalities. By configuring various settings and options, you can enhance the presentation of the drill-down approach, ensuring a user-friendly experience for your audience.
